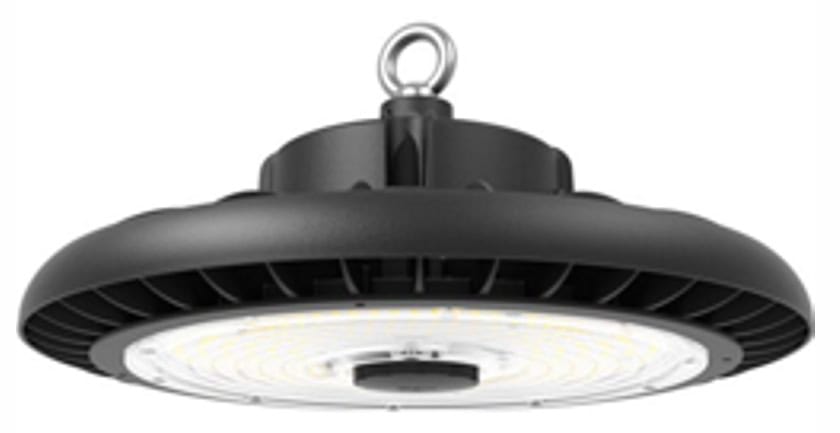

Pilot 3 supersedes Pilot 2, adding performance improvements, superior glare control, a new aesthetic appearance and reduced energy consumption. The heart of this system continues to utilise award winning Lumileds as the LED light source, with top-tier driver components.
This combination delivers the required punch to exceed performance expectations in replacing any traditional highbay light fitting, including 1000W luminaires.
Ideal for applications where a dependable and energy efficient workhorse is the primary criteria.
- Quality construction
- Lumileds high efficacy chipset
- Easy installation
- No UV or IR radiation
- Comes with eye bolt for suspension
- Voltage input: 100-277VAC
- Power factor: ≥0.95
- Efficacy: ≥190 Lm/W
- CRI: ≥80
- Operating temp: -25° to +50°C
- Ingress protection: IP65
- Impact rating: IK10
- Warranty: 5 years
Options are special order. Please contact Lumitex for more information.
Colour temperature (CCT) options:
3000K, 4000K
Beam angle options:
60°, 90°
Sensor options:
Daylight & microwave sensor, Daylight dimming
Dimming options:
Phase, Dali
| Part Number | Lumens (Lm) | Watts | CCT (K) | Beam Angle | Dimmable | Weight |
|---|---|---|---|---|---|---|
| LUMH26080631 | 15,200 | 80 | 5700 | 120° | 1-10V | 2.8 |
| LUMH26100631 | 19,000 | 100 | 5700 | 120° | 1-10V | 2.8 |
| LUMH26150631 | 28,500 | 150 | 5700 | 120° | 1-10V | 2.8 |
| LUMH26200631 | 38,000 | 200 | 5700 | 120° | 1-10V | 4.1 |
