Vallum is an angular looking wall light built to deliver on all fronts. Its multiple power levels, high efficacy LED’s providing wide spacing and asymmetric distribution provides great light coverage.
A wall pack light fitting that offers IP66 and IK08 ratings and 2 sized footprints in a smart Silver powder coated finish. Can be turned upside down for uplighter. Power needs to be derated if orientated upwards to protect thermal management.
• Durable Cast-Aluminium Fixture
• High Luminous Efficacy
• Slim Design
• Full Cut-Off Asymmetric Beam Angle
• Dark Sky Friendly
• 5 Years Warranty
• Wattages: 40W/70W
• Colour Temperature (CCT):
—– 3000K/5000K
• Intelligent Control:
—– Photocell (Daylight Sensor)
• Fixture Colour: Grey/White
• Voltage: 220-240VAC 50/60Hz
• Operating Temperature: -30°C to +45°C
• Power Factor: ≥0.90
• Efficacy: 145Lm/W
• Beam Angle: 45°x150°
• CRI: ≥70
• CCT: 4000K
• Ingress Protection: IP66
• Impact Rating: IK08
• Optical Lens: Polycarbonate (PC)
• Surge protection: 4KV line-line, 6KV line-earth
• Fixture Colour: Silver (RAL9006)
• Category of Corrosion: C3
• Finish: Powder Coating

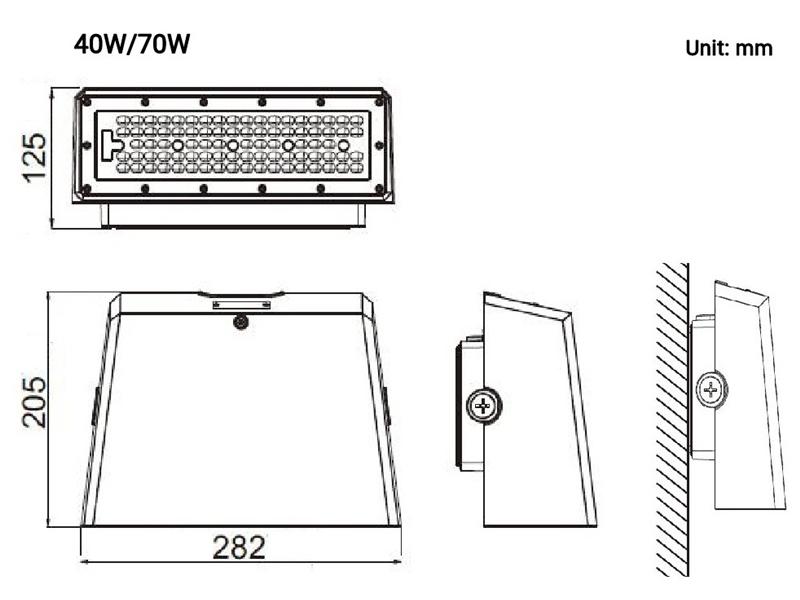

| Part Number | Wattage | Colour (CCT) | Beam Angle | Lumens (Lm) | Product Dimensions (mm) | Sensor / Photocell |
|---|---|---|---|---|---|---|
| LUMY30404S | 40 | 4000 | 45°x150°, Tilt55° | 5800 | 282x125x205 | none |
| LUMY30704S | 70 | 4000 | 45°x150°, Tilt55° | 9100 | 282x125x205 | none |
| LUMY30705SP | 70 | 5000 | 45°x150°, Tilt55° | 9100 | 282x125x205 | PIR Daylight Sensor |
