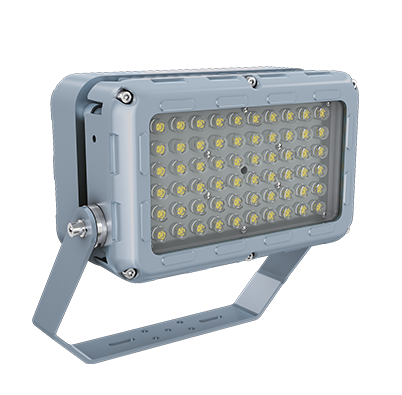

The LumiHaz™ XP4 LED fixture is engineered for marine and hazardous environments, in the presence of flammable vapours or gases or combustible dusts as defined by IECEx.
Various options are available to customise this product according to specific site requirements.
• ADC12 Aluminium Housing
• Stainless Steel Fasteners
• High Luminous Efficacy
• Full Range of Optics for a Wide Variety of Hazardous Industrial Lighting Applications such as Power Plants, Wastewater Treatment Plants, Oil&Gas Drilling Rigs, Shipyards, Petrochemical Plants, Chemical Processing Facilities, Coal Mines, etc.
• 5-Year Warranty
• Voltage Input: 200-277VAC 50/60Hz
• Wattages: 30W/50W/60W/100W
• Operating Temperature: -40℃ to +65℃
• Power factor: ≥0.95
• Luminous Efficacy: 110-130lm/W
• Beam Angle: 120°
• CRI: ≥70
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK07
• Fixture Colour: Grey RAL9006
IECEx Standard (Zone 1):
—• Ex eb mb IIC T6…T4 Gb
—• Ex tb IIIC T95°C…T125°C Db IP66
IECEx Standard (Zone 2&21&22):
—• Ex ec mb llC T6…T4 Gc
—• Ex tb lllC T80°C…T100°C Db
ATEX Standard (Zone 1):
—• II 2 G Ex eb mb IIC T6…T4 Gb
—• II 2 D Ex tb IIIC T95°C…T125°C Db IP66
ATEX Standard (Zone 2&21&22):
—• II 3G Ex ec mb llC T6…T4 Gc
—• II 2D Ex tb lllC T80°C…T100°C Db
• Colour Temperature (CCT):
—– 3000K
—– 5000K
—– 6000K

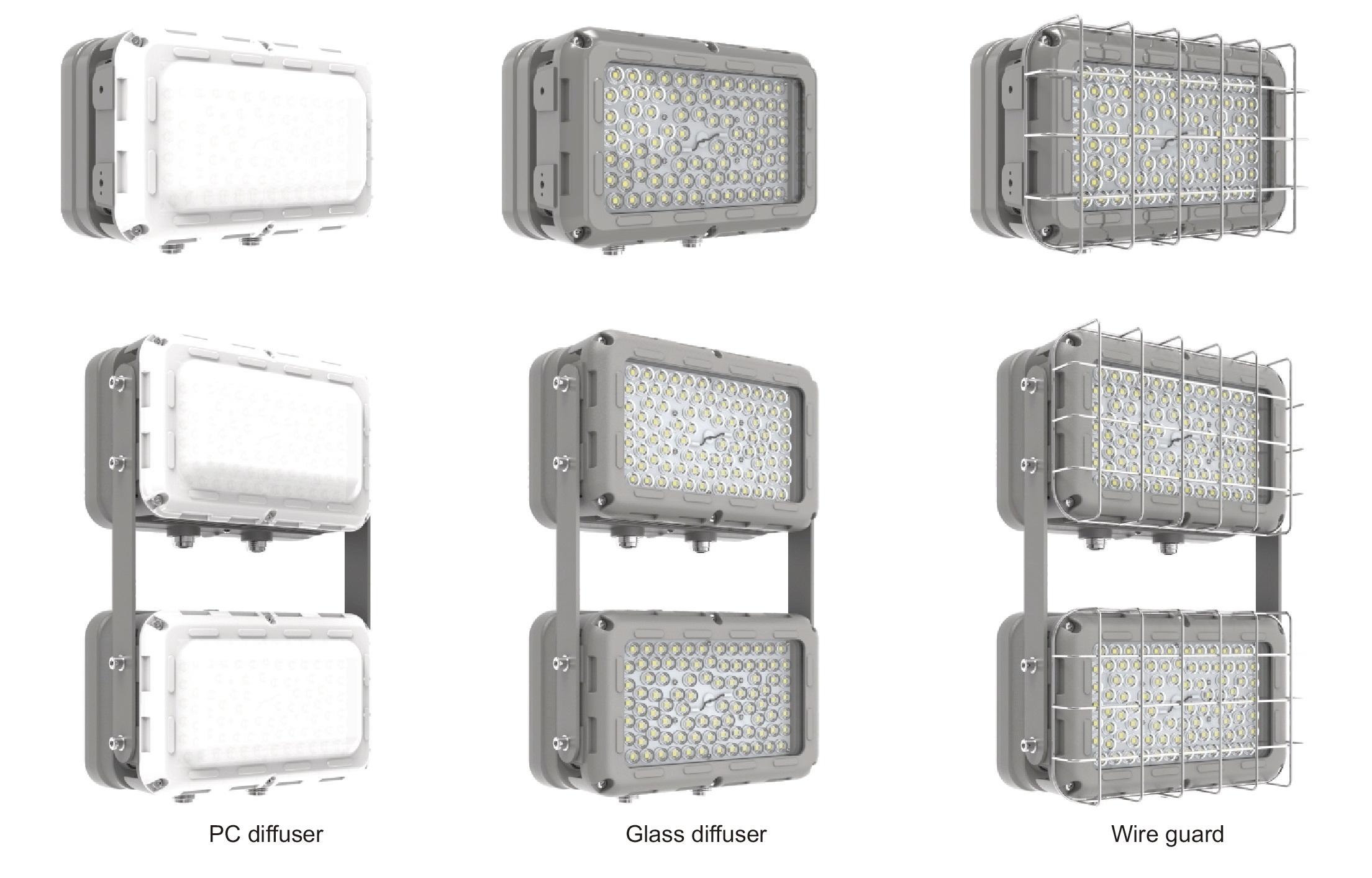

• Glass Protector:
—– Wire Guard
• Diffuser:
—– Polycarbonate (PC) Diffuser
• Dimming:
—– 0-10V Dimmable
• Layout:
—– Twin Configuration (Only 50W & 100W Models)

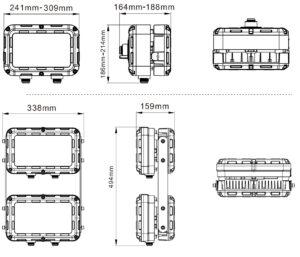

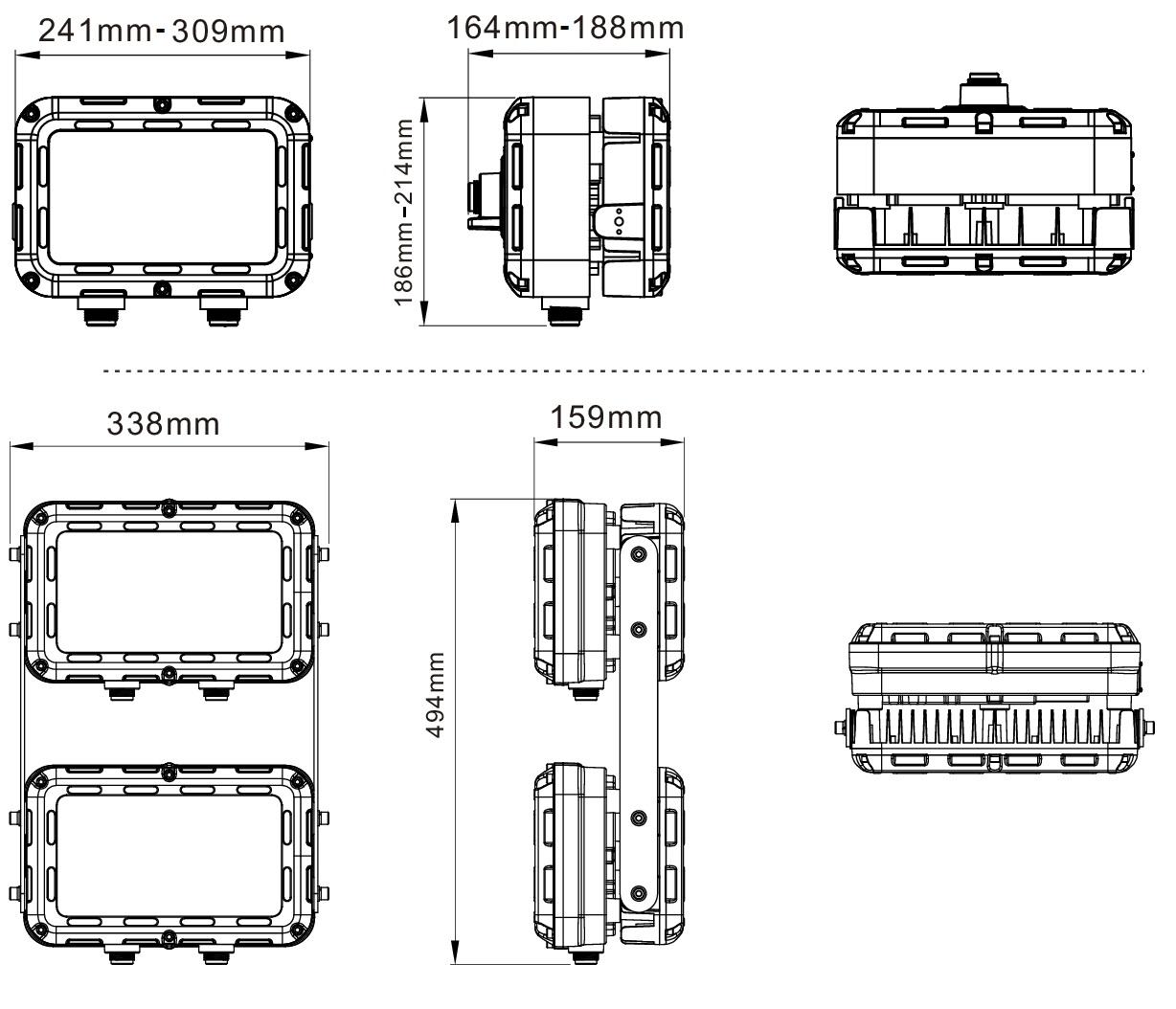

| Part Number | Wattage | Colour (CCT) | Beam Angle | Lumens (Lm) | Product Dimensions (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|
| LUMXP4S3040GL | 30 | 4000 | 120° | 3300-3900 | 241x186x164 | 5.5 |
| LUMXP4S5040GL | 50 | 4000 | 120° | 5500-6500 | 309x214x188 | 7.25 |
| LUMXP4S6040GL | 60 | 4000 | 120° | 6600-7800 | 241x186x164 | 5.5 |
| LUMXP4S10040GL | 100 | 4000 | 120° | 11000-13000 | 309x214x188 | 7.25 |
