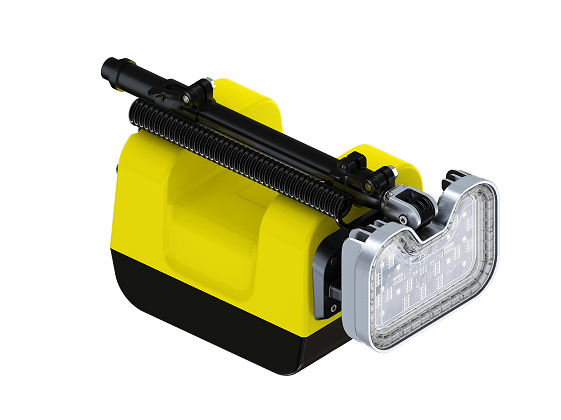

LumiHaz™ XPM is a portable flood-lighting solution designed for use in hazardous environments, inclusive of Zone 0. A built-in NM-H battery provides up to 10 hours of safe, reliable working time and powers a 1600lm LED flood on a compact, extendable mast.
• Three Preset Light Output Levels
• Up to 1,600 Lumens
• Up to 10 Hours of Run Time
• Full Time Battery Level Indication with Low Level Flashing Indicator
• Deployable Mast with 360 Degree Rotation
• 5-Year Warranty
• Voltage: 100-240VAC 50/60Hz (Charger); 10.8-14.4VDC (Battery)
• Wattage: 5W-19.5W
• Operating Temperature: -20°C to +40°C
• Lumens: 1,600lm (High Output); ≥500lm (Low Output)
• Beam Angle: 125°
• CCT: 5000K
• Ingress Protection: IP66
• Battery Type: Ni-MH (9Ah)
• Battery Lifespan: 500 Cycles

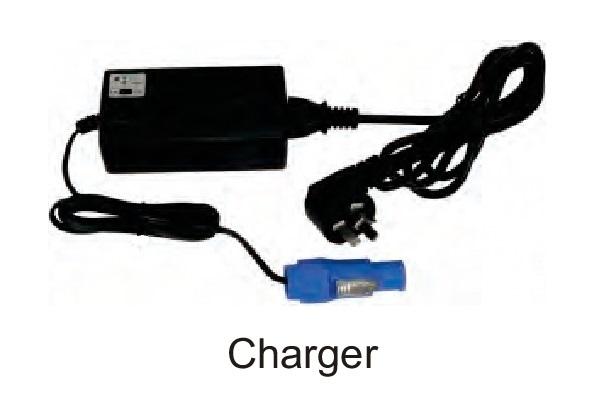

• Charging Time: 7 hours (1.8A); 14 hours (0.9A)
• Materials: Polycarbonate (Body & Lens); Aluminium Alloy (Head)
• Body Colour: High Visibility Yellow
IECEx:
—• Ex ia IIC T4 Ga
ATEX:
—• II 1G Ex ia IIC T4 Ga
UL913:
—• Class I, Division 1, Groups A, B, C and D, T4
—• Ex ia IIC T4 Ga
—• Class I, Zone 0, AEx ia IIC T4 Ga
• Color Temperature (CCT):
—– 3000K
—– 4000K
—– 6500K
| Part Number | Wattage | Colour (CCT) | Beam Angle | Weight (Kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| LUMXPM19S51 | 5W-19.5W Selectable | 5000 | 125° | 7 | 566x355x206 |
