The LumiHaz™ XPQ LED fixture is engineered for marine and hazardous environments.
To ensure specific site requirements are met, various customisation options are available for this product.
• Isolated LED Compartment
• Suitable a Wide Variety of Hazardous Industrial Lighting Applications
• Excellent Shock & Vibration Resistance
• Enhanced Airflow for Better Heat Dissipation
• High Quality Stainless-Steel Fasteners
• Flexible and Easy Installation
• 5 Years Warranty
• Voltage: 100-277VAC 50/60Hz
• Wattages: 20W/40W/60W/80W/100W/150W/200W
• Ambient Operating Temperature:
—T5/T95°C: -40°C to +45°C
—T4/T130°C: -40°C to +60°C
• Power factor: ≥0.90
• Efficiency: 130Lm/W
• Lumen Output: 2,600-26,000lm
• Beam Angle: 120°
• CRI: ≥70
• Diffuser: Tempered glass (Flat)
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK08 (Glass Cover) / IK10 (with Wire-Guard)
• Fixture Colour: Grey
IECEx:
—• Ex nR IIC T6…T4 Gc
—• Ex tb IIIC T80°C…T130°C Db
ATEX:
—• II 3G Ex nR IIC T6…T4 Gc
—• II 2D Ex tb IIIC T80°C…T130°C Db
Vibration:
—• 5G Vibration Test
• Colour Temperature (CCT):
—– 3000K/5000K/6000K
• Beam Angles:
—– 30°/60°/90°
• Dimming:
—– 0-10V Dimmable
• Mounting:
—– Ceiling/Wall/Pole
• Mounting Bracket:
—– Aluminium/SUS 304
• Protection:
—– Wire-Guard
• Diffuser:
—– Globe (Tempered Glass)
• Intelligent Control:
—– Microwave Motion Sensor

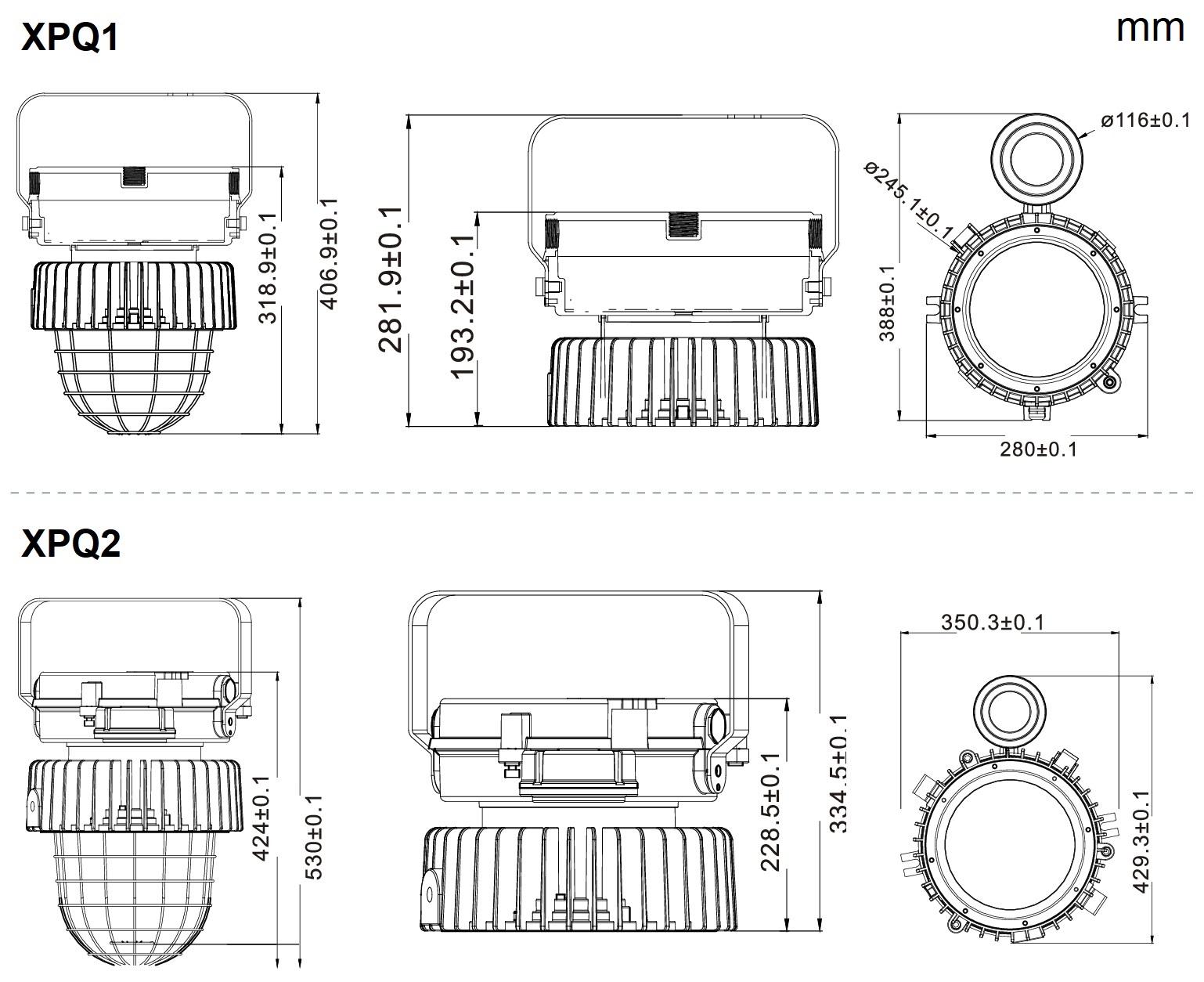

| Part Number | Wattage | Colour (CCT) | Beam Angle | Lumens (Lm) | Product Dimensions (mm) | Option(s) |
|---|---|---|---|---|---|---|
| LUMXPQ1G60440 | 60 | 4000 | 120° | 7800 | 281.9x280x245 | Wire-Guard |
| LUMXPQ160440 | 60 | 4000 | 120° | 7800 | 281.9x280x245 | – |
| LUMXPQ2G100440 | 100 | 4000 | 120° | 13000 | 350.3×350.3×334.5 | Wire-Guard |
| LUMXPQ2100440 | 100 | 4000 | 120° | 13000 | 350.3×350.3×334.5 | – |
| LUMXPQ2G150440 | 150 | 4000 | 120° | 19500 | 350.3×350.3×334.5 | Wire-Guard |
| LUMXPQ2150440 | 150 | 4000 | 120° | 19500 | 350.3×350.3×334.5 | – |
