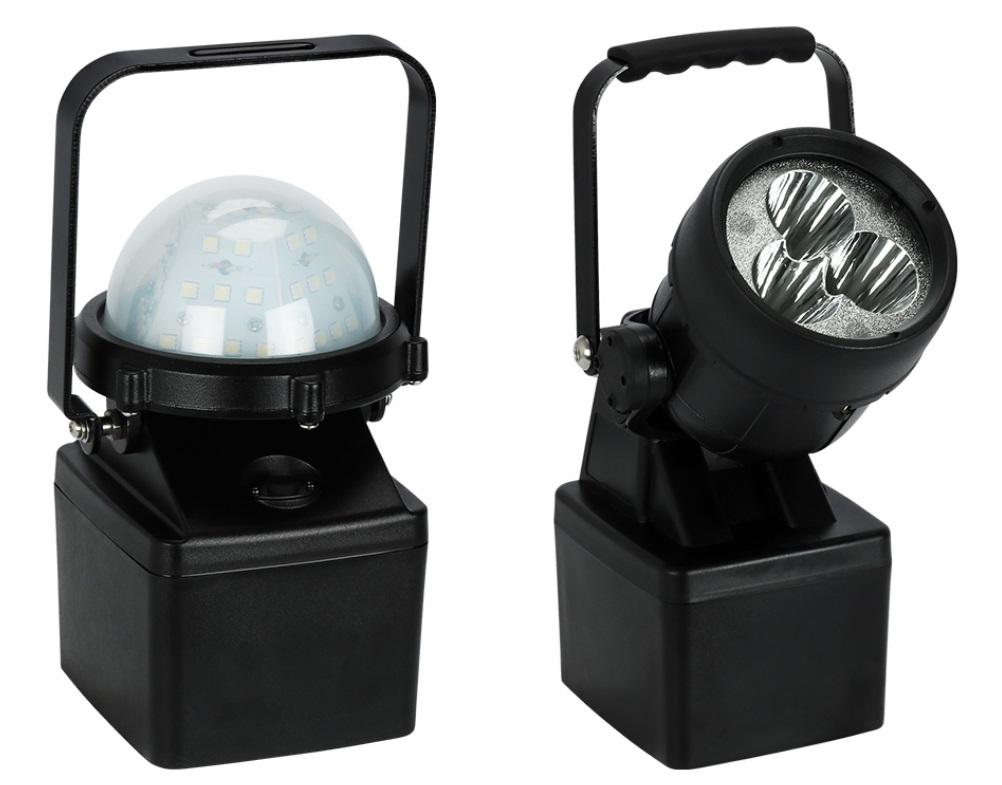

The LumiHaz™ XPC is a battery powered LED hand-held lamp engineered for hazardous environments, particularly in areas where flammable gases or combustible dusts are present as defined by IECEx (Group II, Zone 2 IIC T4 gas explosive atmospheres as well as Zone 22 IIIC T135°C dust explosive atmospheres).
• Excellent Energy Efficiency
• Lithium-Ion Battery
• Three Light Modes: Strong, Flash and Work Light
• Over-Charging and Short-Circuit Protection
• Warning Light Function (Yellow) with S.O.S Signal
• Magnetic Base
• Waterproof and Impact-Resistant
• 5 Years Warranty
• Rated Power: 10W
• Rated Voltage: 11.1V
• Charging Voltage: 12.65V
• Rated Capacity: 2.6Ah
• Charging Adaptor:
—– Rated Input: 100-240VAC, 50/60Hz, 0.6A
—– Rated Output: 12VDC, 1.5A
• Lumen Output: Up to 1170lm
• Ambient Operating Temperature: -10℃ to +60℃
• Beam Angle: 120°
• CRI: ≥70
• CCT: 4000K (Standard)
• Illumination Distance: 30 Meters
• Ingress Protection: IP65
• Diffuser Material: Polycarbonate/Toughened Glass
• Colour: Black
IECEx:
—• Ex ec ic llC T4 Gc
—• Ex ic tc IIIC T135°C Dc
ATEX:
—• II 3GD Ex ec ic llC T4 Gc
—• Ex ic tc IIIC T135°C Dc
• The Battery Pack is NOT Replaceable
• DO NOT Charge in a Hazardous Area
• DO NOT Open When Energized
| Part Number | Rated Power | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LUMXPC11042PC | 10 | 4000 | 120° | 70 | 1000 | 230x130x130 |

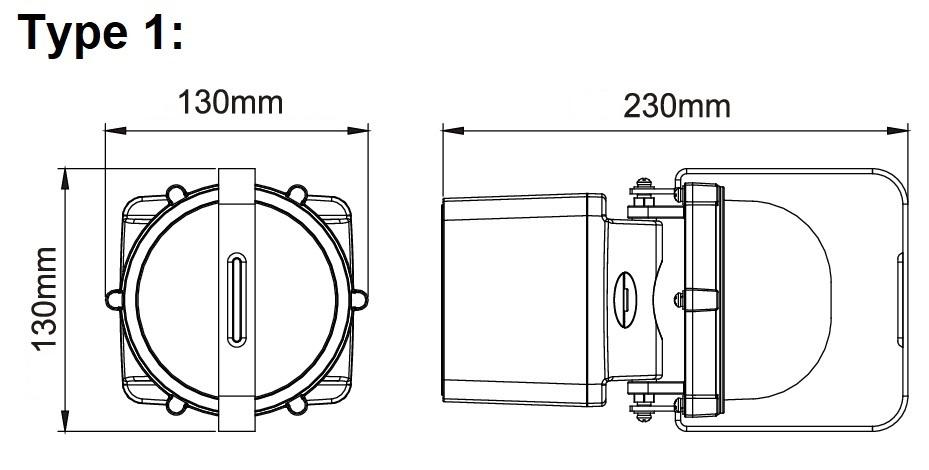

| LUMXPC21042TG | 10 | 4000 | 120° | 70 | 1170 | 281x179x125 |
