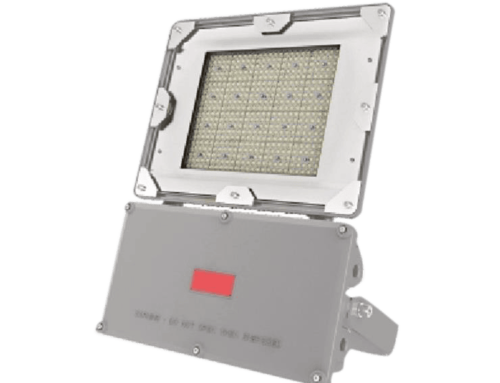

The LumiHaz™ XPA LED fixture is engineered for marine and hazardous environments, particularly in areas where flammable vapours, gases, or combustible dusts are present, as defined by IECEx.

To ensure specific site requirements are met, various customisation options are available for this product.

• High-Quality Copper-Free Aluminium Housing
• Excellent Cooling Performance
• Heavy-Duty and High Impact Resistance
• Full Range of Optics for a Wide Variety of Hazardous Industrial Lighting Applications
• Marine-Grade Powder Coating
• Tempered Glass for Increased Heat Resistance
• 5 Years Warranty

• Voltage Input: 100-277VAC 50/60Hz / DC36V
• Wattages: 20, 60, 100, 150, 180 & 200W
• Ambient Operating Temperature:
—T4: -40℃ to +65℃
—T5: -40℃ to +55℃
—T6: -40℃ to +40℃
• Power factor: ≥0.90
• Efficiency: 130Lm/W
• Beam Angle: 60° (Standard)
• Lumen Output: 2,600-26,000lm
• CRI: ≥70
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK10
• Cable Entry: M25 or 3/4 NPT (Side)
• Fixture Colour: Grey

Standard Flame-Proof Version
IECEx:
—• Gas: Ex db IIB T6…T4 Gb
—• Dust: Ex tb IIIC T80°C…120°C Db IP66
ATEX:
—• Gas: II 2 G Ex db IIB T6…T4 Gb
—• Dust: II 2 D Ex tb IIIC T80°C…120°C Db IP66
Flame-Proof and Increased Safety Option
IECEx:
—• Gas: Ex db eb IIB T6…T4 Gb
—• Dust: Ex tb IIIC T80°C…120°C Db IP66
ATEX:
—• Gas: II 2 G Ex db eb IIB T6…T4 Gb
—• Dust: II 2 D Ex tb IIIC T80°C…120°C Db IP66

• Colour Temperature (CCT):
—– 5000K
—– 6000K
• Beam Angles:
—– 40°, 90° & 120°
• Dimming:
—– 0-10V Dimmable

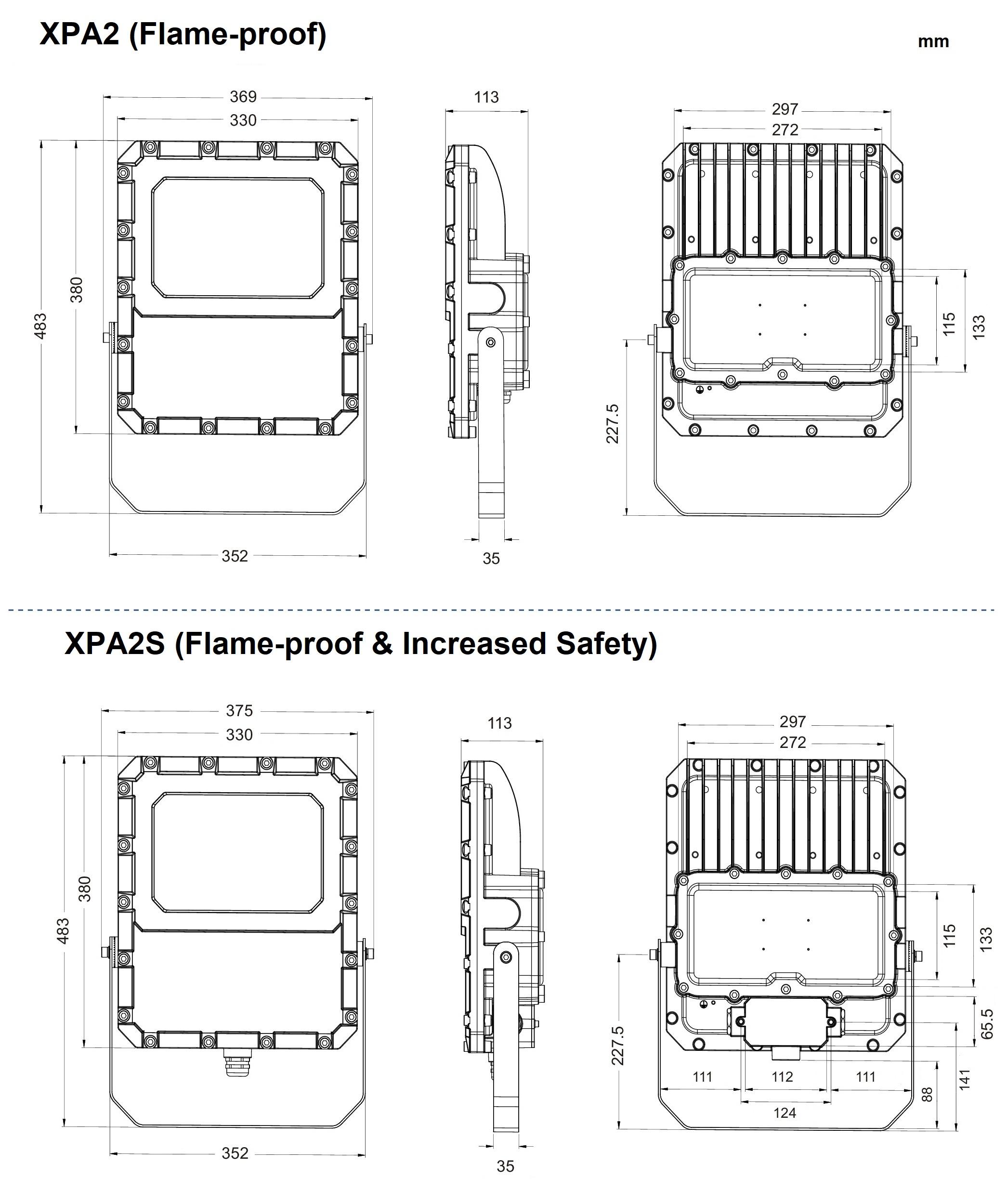

• Emergency Function (XPA2 and XPA2S Models Only):
—– Up to 1.5 Hours Backup Supply Time
• Additional Option(s):
—– Flame-Proof and Increased Safety (with Side & Bottom Cable Entries)

Part Number Wattage Colour (CCT) Beam Angle CRI Lumens (Lm) Option(s)
LUMXPA1S100420 100 4000 60° 70 13000 Increased Safety
LUMXPA2100422 100 4000 60° 70 13000 Emergency
LUMXPA1100420 100 4000 60° 70 13000 –
LUMXPA1100421 100 4000 60° 70 13000 0-10V Dimmable



Download the datasheet in PDF format
