The LumiHaz™ XP7 LED fixture is engineered for marine and hazardous environments.
To ensure specific site requirements are met, various customisation options are available for this product.
• Heavy-Duty and High Impact Resistance
• Copper Free Aluminium Body
• Full Range of Optics for a Wide Variety of Hazardous Industrial Lighting Applications such as Power Plants, Wastewater Treatment Plants, Oil&Gas Drilling Rigs, Shipyards, Petrochemical Plants, etc.
• Outstanding LED Lumen Maintenance
• Marine Grade Powder Coating
• 5-Year Warranty
• Voltage Input: 200-277VAC 50/60Hz
• Wattages: 100W/160W/200W/240W/300W/400W/450W
• Operating Temperature: -40℃ to +65℃
• Power Factor: ≥0.92
• Efficiency: ≥130Lm/W
• Lumen Output: 13,000-58,500lm
• Beam Angle: 90° (Standard)
• CRI: ≥70 (Standard)
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK09 (Glass)
• Surge Protection: 4kV/6kV (Standard)

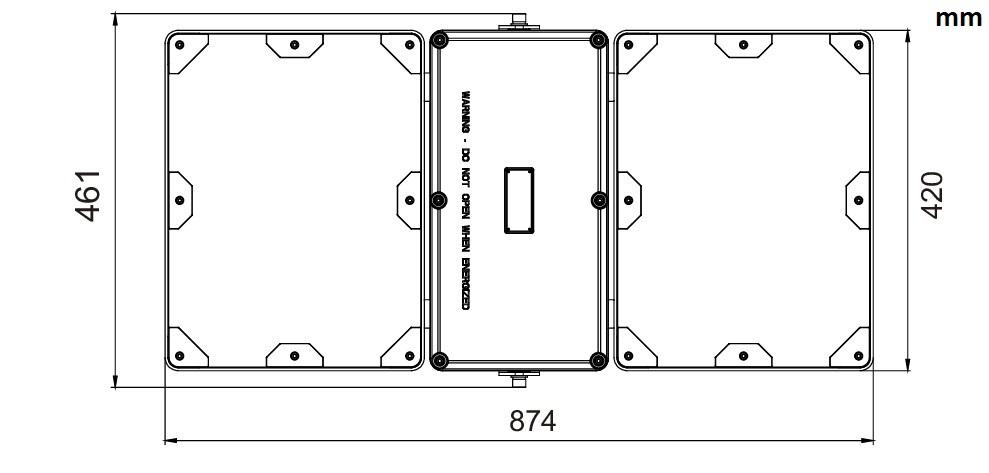

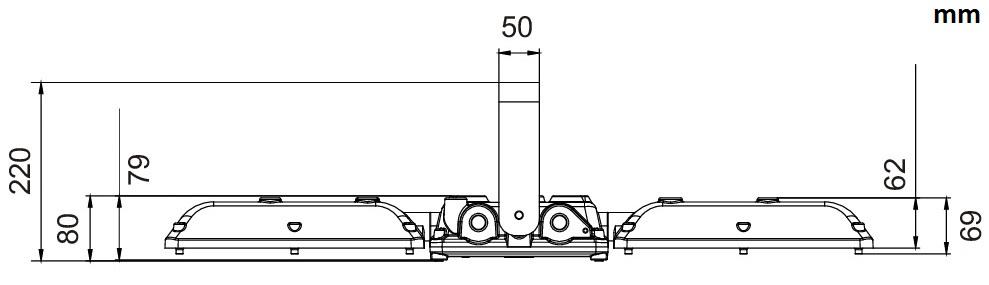

• Dimension (mm): 874x420x220
• Fixture Colour: Grey
IECEx:
—• Ex mb eb IIC T4/T5/T6 Gb
—• Ex tb IIIC T80°C/T100°C Db IP66
ATEX:
—• Ex II 2 G Ex mb eb IIC T4/T5/T6 Gb
—• Ex II 2 D Ex tb IIIC T80°C/T100°C Db IP66
• Colour Temperature (CCT):
—– 5000K
—– 6000K
• Beam Angles:
—– 60° & 120°
• Color Rendering Index (CRI):
—– 80
• Surge Protection:
—– 6kV/10kV
• Dimming:
—– 0-10V Dimmable
| Part Number | Wattage | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) |
|---|---|---|---|---|---|
| LUMXP7100420 | 100 | 4000 | 90° | 70 | 13000 |
| LUMXP7160420 | 160 | 4000 | 90° | 70 | 20800 |
| LUMXP7200420 | 200 | 4000 | 90° | 70 | 26000 |
| LUMXP7240420 | 240 | 4000 | 90° | 70 | 31200 |
| LUMXP7300420 | 300 | 4000 | 90° | 70 | 39000 |
| LUMXP7400420 | 400 | 4000 | 90° | 70 | 52000 |
| LUMXP7450420 | 450 | 4000 | 90° | 70 | 58500 |
