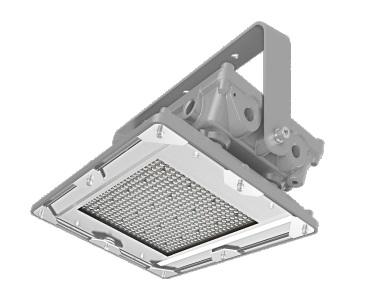

The LumiHaz™ XP9 LED fixture is engineered for marine and hazardous environments, particularly in areas where flammable vapours, gases, or combustible dusts are present, as defined by IECEx.
To ensure specific site requirements are met, various customisation options are available for this product.
• Heavy-Duty and High Impact Resistance
• Copper Free Aluminium Body

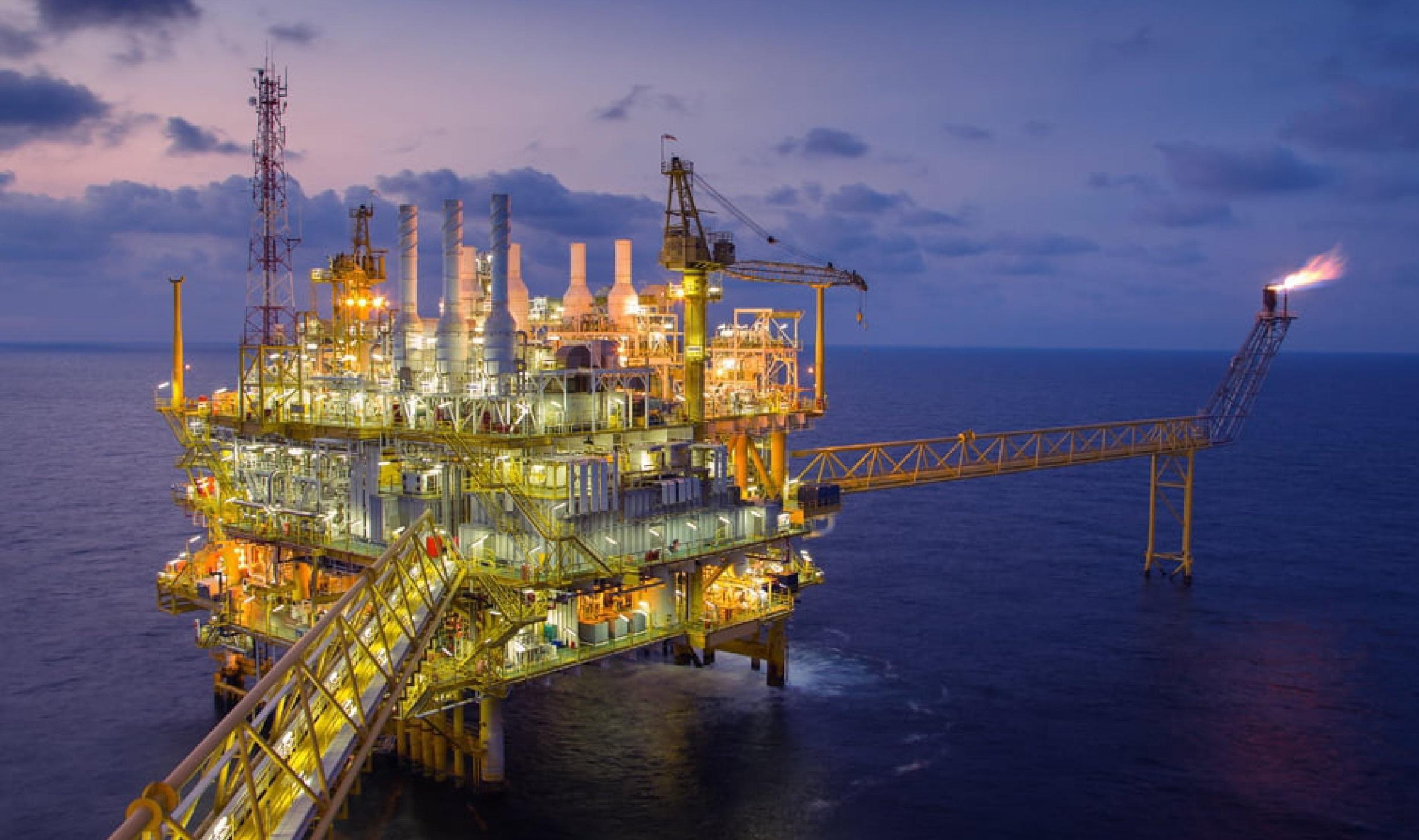

• Full Range of Optics for a Wide Variety of Hazardous Industrial Lighting Applications such as Power Plants, Wastewater Treatment Plants, Oil&Gas Drilling Rigs, Shipyards, Petrochemical Plants, etc.
• Outstanding LED Lumen Maintenance
• Marine Grade Powder Coating
• 5-Year Warranty
• Voltage Input: 200-277VAC 50/60Hz
• Wattages: 50/80/100/120/150/200/240W
• Operating Temperature: -40℃ to +65℃
• Power Factor: ≥0.92
• Efficiency: ≥130Lm/W
• Lumen Output: 6,500-31,200lm
• Beam Angle: 90° (Standard)
• CRI: ≥70 (Standard)
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK09 (Glass)
• Surge Protection: 4kV/6kV (Standard)

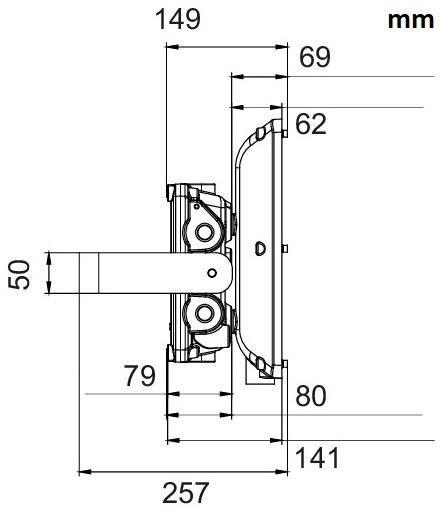

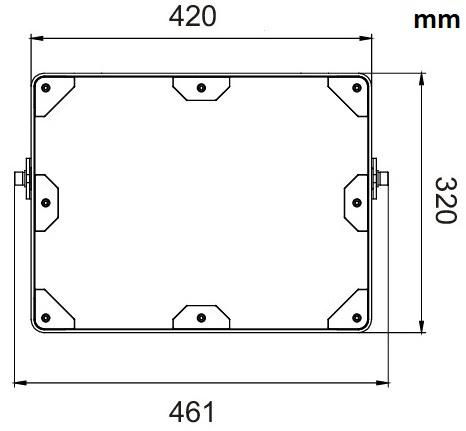

• Dimension (mm): 460x320x257
• Fixture Colour: Grey
IECEx:
—• Ex mb eb IIC T4/T5/T6 Gb
—• Ex tb IIIC T80°C/T100°C Db IP66
ATEX:
—• Ex II 2 G Ex mb eb IIC T4/T5/T6 Gb
—• Ex II 2 D Ex tb IIIC T80°C/T100°C Db IP66
• Colour Temperature (CCT):
—– 5000K
—– 6000K
• Beam Angles:
—– 60° & 120°
• Color Rendering Index (CRI):
—– 80
• Surge Protection:
—– 6kV/10kV
• Dimming:
—– 0-10V Dimmable
| Part Number | Wattage | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) |
|---|---|---|---|---|---|
| LUMXP950420 | 50 | 4000 | 90° | 70 | 6500 |
| LUMXP980420 | 80 | 4000 | 90° | 70 | 10400 |
| LUMXP9100420 | 100 | 4000 | 90° | 70 | 13000 |
| LUMXP9120420 | 120 | 4000 | 90° | 70 | 15600 |
| LUMXP9150420 | 150 | 4000 | 90° | 70 | 19500 |
| LUMXP9200420 | 200 | 4000 | 90° | 70 | 26000 |
| LUMXP9240420 | 240 | 4000 | 90° | 70 | 31200 |
