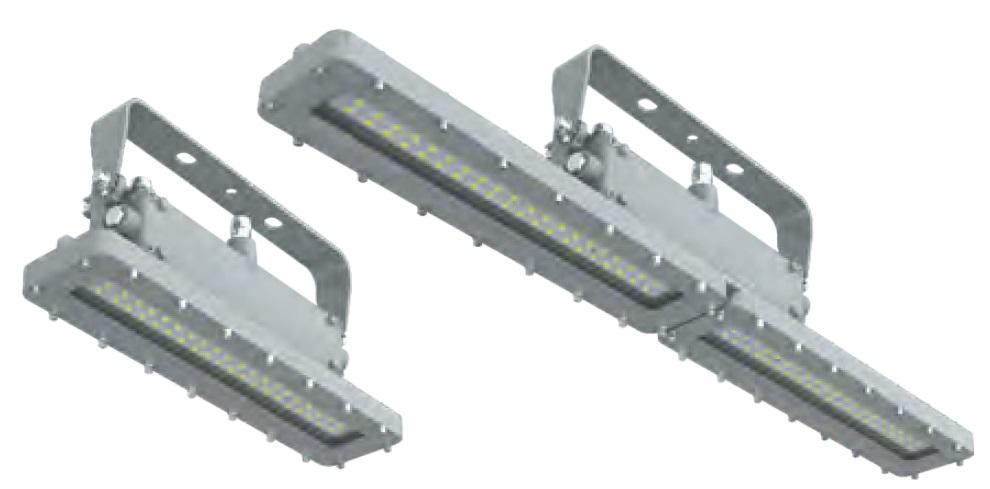

The LumiHaz™ XPI LED fixture is engineered for marine and hazardous environments, particularly in areas where flammable vapours, gases, or combustible dusts are present, as defined by IECEx.
To ensure specific site requirements are met, various customisation options are available for this product.
• Copper-Free Aluminium Housing
• Suitable a Wide Variety of Hazardous Industrial Lighting Applications
• Excellent Corrosion Resistance
• High Quality Stainless-Steel Fasteners
• Flexible and Easy Installation
• 5 Years Warranty
• Voltage input: 100-277VAC 50/60Hz
• Wattages: 20W/40W/60W/80W/100W/120W
• Ambient Operating Temperature: -40℃ to +40℃
• Power factor: ≥0.95
• Efficiency: 140Lm/W
• Lumen Output: 2,800-16,800lm
• Beam Angle: 120°
• CRI: ≥70
• Diffuser: Tempered glass
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK08 (Glass Cover) / IK10 (with Wire-Guard)
• Fixture Colour: Grey
IECEx:
—• Ex db IIB T4 Gb
—• Ex tb IIIC T63.5°C Db IP65
ATEX:
—• II 2 G Ex db IIB T4 Gb
—• II 2 D Ex tb IIIC T63.5°C Db IP65
• Colour Temperature (CCT):
—– 3000K/5000K/6000K
• Dimming:
—– 0-10V Dimmable

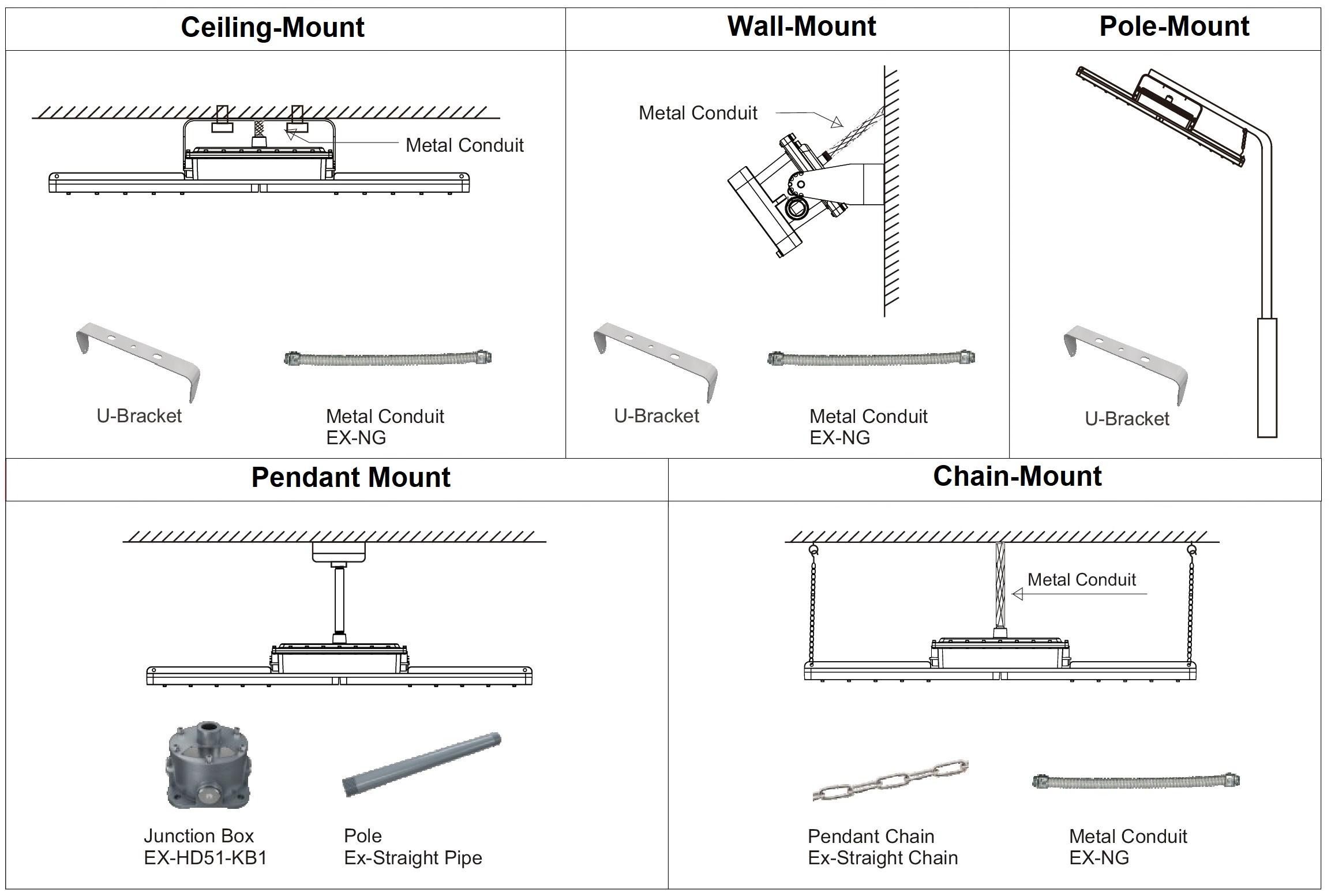

• Mounting:
—– Ceiling/Pendant/Wall/Chain/Pole
• Protection:
—– Wire-Guard

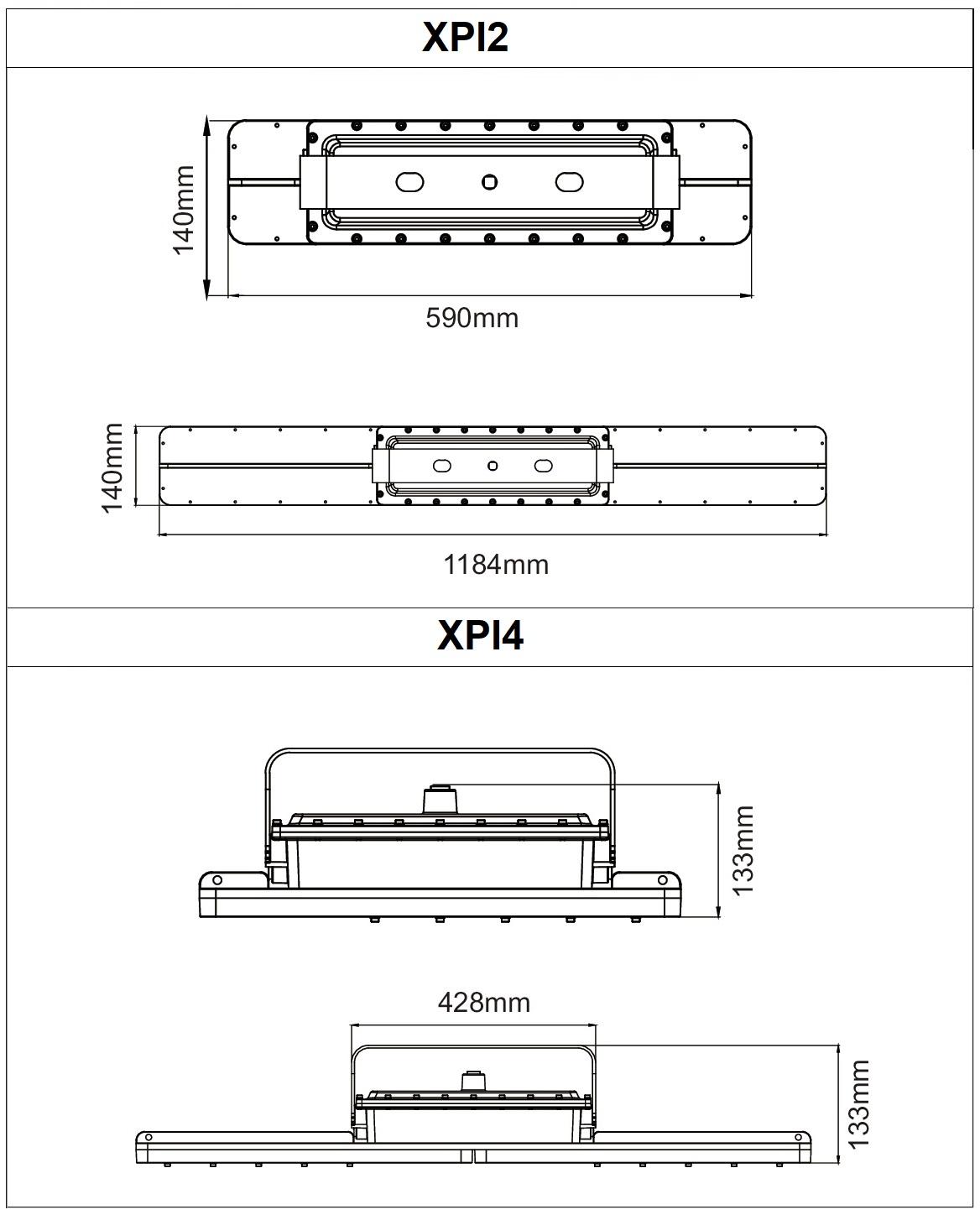

| Part Number | Wattage | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LUMXPI220401 | 20 | 4000 | 120° | 70 | 2800 | 590x140x133 |
| LUMXPI440401 | 40 | 4000 | 120° | 70 | 5600 | 1184x140x133 |
