The LumiHaz™ XPB LED fixture is engineered for marine and hazardous environments, particularly in areas where flammable vapours, gases, or combustible dusts are present, as defined by IECEx.
To ensure specific site requirements are met, various customisation options are available for this product.
• ADC12 Aluminium Housing
• Rugged and Compact Construction
• Suitable for a Wide Variety of Hazardous Industrial Lighting Applications
• 5 Years Warranty
• Voltage input: 100-277VAC 50/60Hz / 12-48VDC

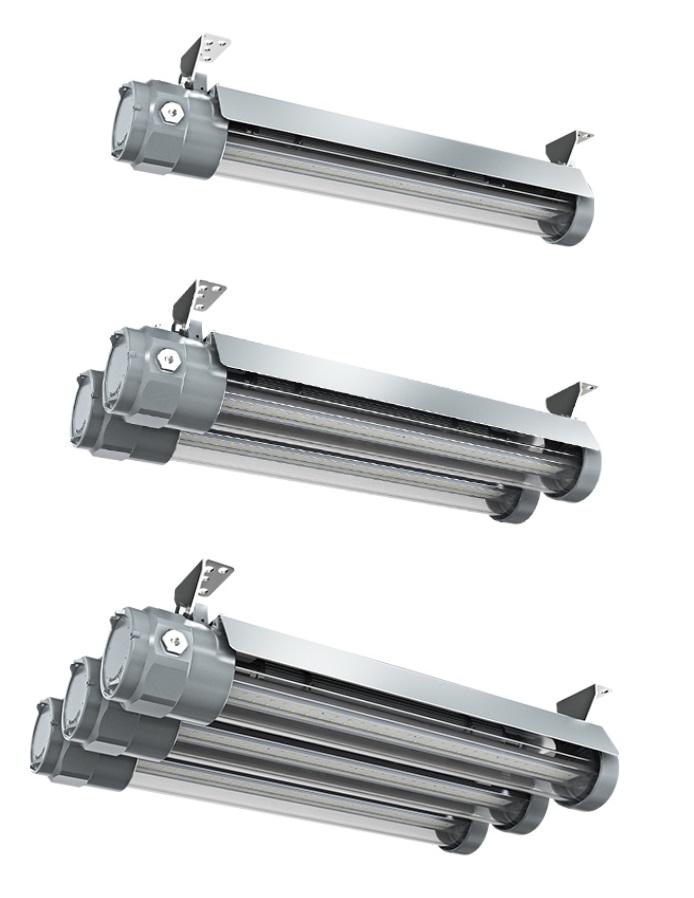

• Wattages: 1x30W, 2x30W, 3x30W
• Length: 1365mm
• Ambient Operating Temperature: -40℃ to +55℃
• Power factor: ≥0.90
• Efficiency: 130Lm/W
• Lumen Output: 2,600-15,600lm
• Beam Angle: 120°
• CRI: ≥70
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK10 (Enclosure) / IK08 (Glass)
• Fixture Colour: Grey
IECEx:
—• Ex db eb mb IIC T6/T5 Gb
—• Ex tb IIIC T80°C/T95°C Db IP66
Or
—• Ex db ec IIC T6/T5/T4 Gc
—• Ex tc IIIC T80°C/T95°C/T105°C Dc IP66
ATEX:
—• II 2GD Ex db eb mb IIC T6/T5 Gb
—• II 2GD Ex tb IIIC T80°C/T95°C Db IP66
Or
—• II 3GD Ex db ec IIC T6/T5/T4 Gc
—• II 3GD Ex tc IIIC T80°C/T95°C/T105°C Dc IP66
• Colour Temperature (CCT):
—– 3000K
—– 5000K
—– 6000K
• Length/Wattages/Operating Temperature:
—– 762mm / 1x20W, 2x20W, 3x20W / -40℃ to +45℃
—– 1365mm / 1x40W, 2x40W, 3x40W / -40℃ to +60℃

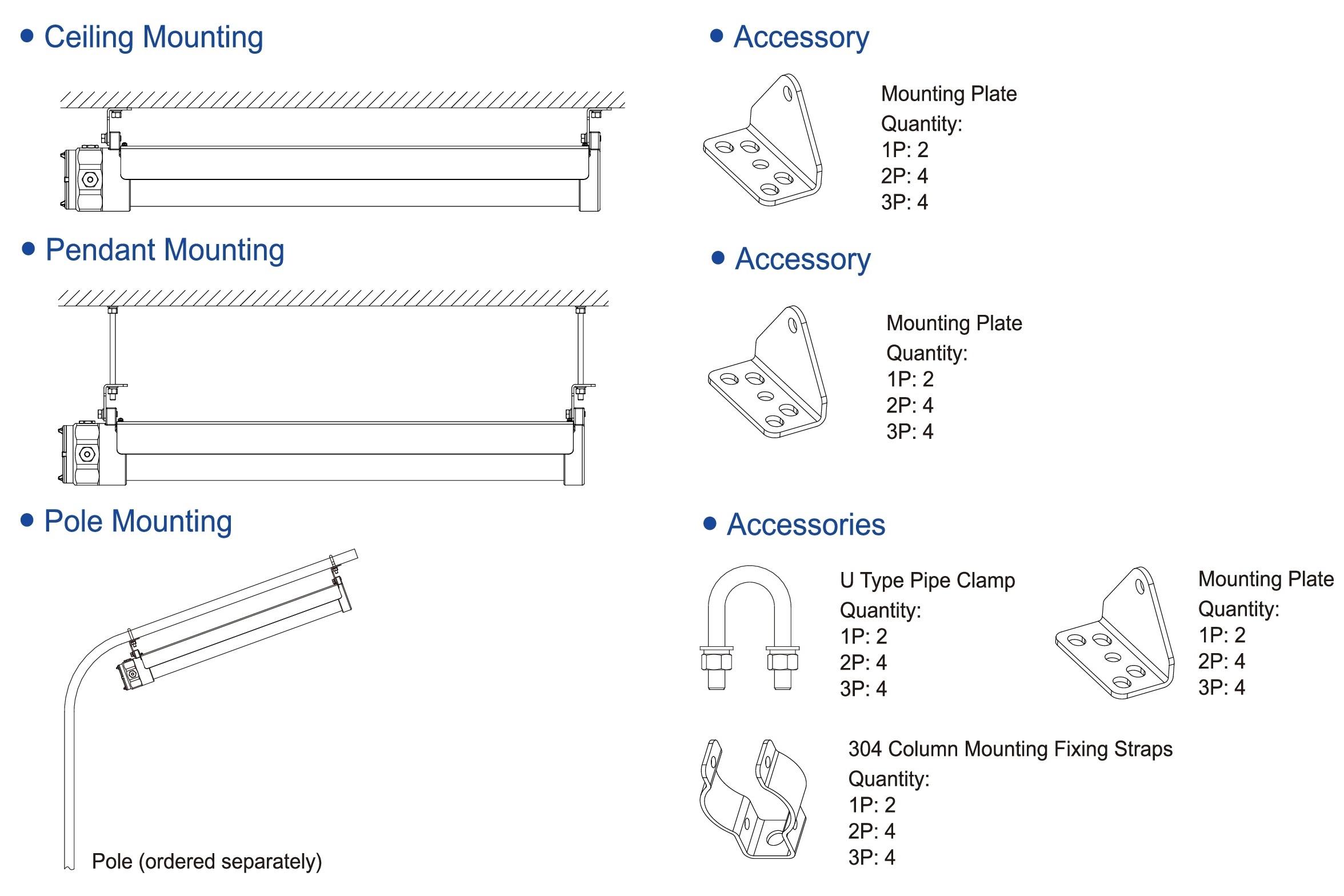

• Mounting:
—– Ceiling
—– Pendant
—– Pole
• Emergency Function:
—– Up to 1.5 Hours Backup Supply Time
| Part Number | Wattage | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LUMXPB1304213 | 30 | 4000 | 120° | 70 | 3900 | 1365x193x134.5 |
| LUMXPB2604213 | 60 (2 x 30) | 4000 | 120° | 70 | 7800 | 1365x312x193 |
| LUMXPB3904213 | 90 (3 x 30) | 4000 | 120° | 70 | 11700 | 1365x462x193 |
