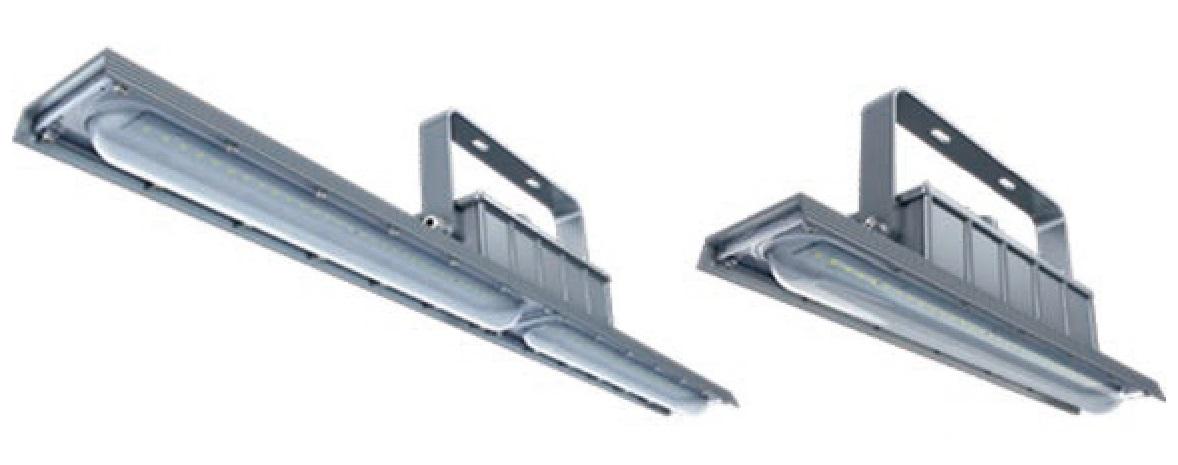

The LumiHaz™ XPH LED fixture is engineered for marine and hazardous environments, particularly in areas where flammable vapours, gases, or combustible dusts are present, as defined by IECEx.
To ensure specific site requirements are met, various customisation options are available for this product.
• Copper-Free Aluminium Housing
• Compact and Robust Structure
• Suitable a Wide Variety of Hazardous Industrial Lighting Applications
• Marine-Grade Powder Coating
• Flexible and Easy Installation
• 5 Years Warranty
• Voltage input: 100-277/200-480VAC 50/60Hz
• Wattages: 20W/40W/60W/80W
• Ambient Operating Temperature: -40℃ to +60℃
• Power factor: ≥0.95
• Efficiency: 140Lm/W
• Lumen Output: 2,800-11,200lm
• Beam Angle: 120°
• CRI: ≥70
• Diffuser: Polycarbonate – PC (Standard)
• CCT: 4000K (Standard)
• Ingress Protection: IP66
• Impact Rating: IK08 (Glass Cover) / IK10 (with Wire-Guard)
• Fixture Colour: Grey (RAL7040)
IECEx:
—• Ex ec lIC T6…T3 Gc
—• Ex tb IIIC T80°C/T95°C/T130°C Db
Corrosion Resistance:
—• 1000 Hours Salt Spray
Vibration Test:
—• 5G Vibration
• Colour Temperature (CCT):
—– 3000K/5000K/6000K
• Dimming:
—– 0-10V Dimmable

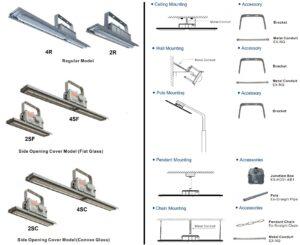

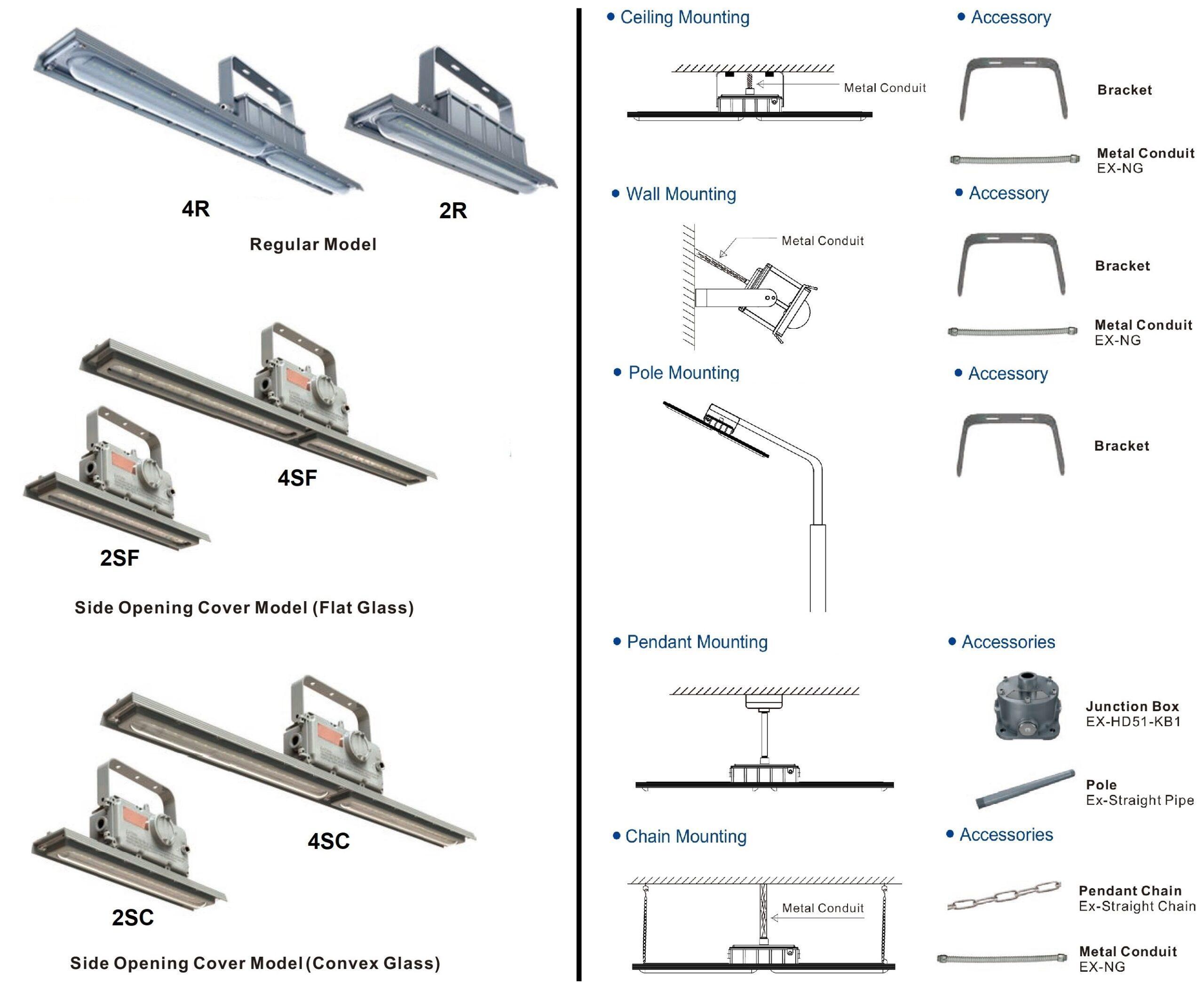

• Mounting:
—– Ceiling/Pendant/Wall/Chain/Pole
• Diffuser:
—– Flat Glass
—– Convex Glass
• Protection:
—– Wire-Guard
• Cable Entries:
—– Side Opening Cover

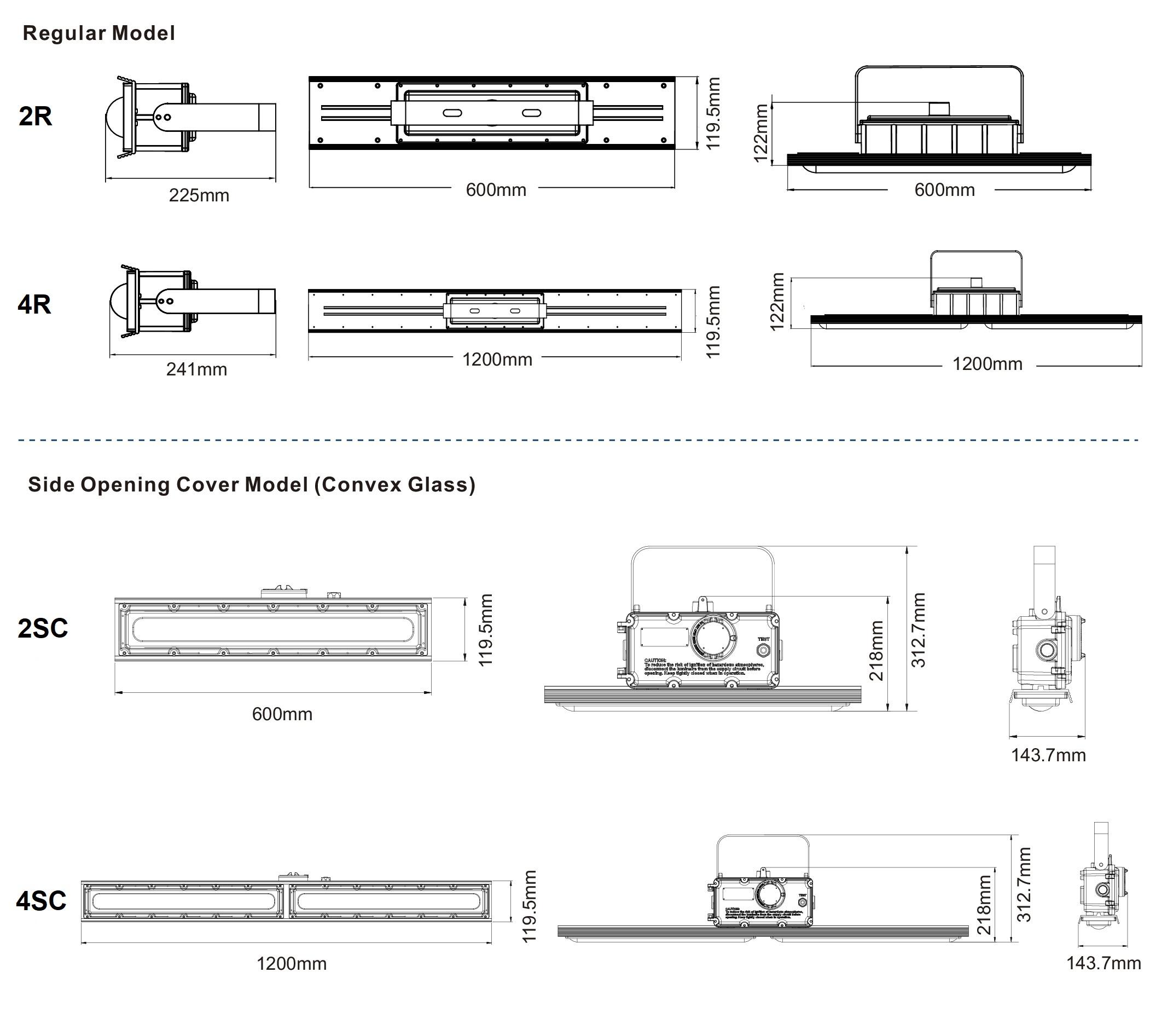

| Part Number | Wattage | Colour (CCT) | Beam Angle | CRI | Lumens (Lm) | Dimensions (mm) |
|---|---|---|---|---|---|---|
| LUMXPH2R20401 | 20 | 4000 | 120° | 70 | 2800 | 600x225x119.5 |
| LUMXPH4R40401 | 40 | 4000 | 120° | 70 | 5600 | 1200x241x119.5 |
