The LumiHaz™ XPK is a LED Explosion Proof Flashlight engineered for use in hazardous environments (inclusive of Zone 0), particularly in areas where flammable gases or combustible dusts are present as defined by IECEx (EX ia I Ma; EX ia IIC T4 Ga & EX ia IIIC T85°C Da).
- Ingress Rated to IP67
- Seven Hours Run Time
- Portable and Convenient
- Supplied with T4 Approved Replaceable Alkaline Batteries
- 5 Years Warranty
• Rated Power (Wattage): 2W
• Battery Type: 4×1.5V Alkaline (Dry)
• Battery Capacity: 2000mAh
• Run Time: 7 hours
• Operating Temperature: -40°C to +50°C
• Sealing Gasket COT: -40°C to +200°C
• Temperature Classification (Gas): T4
• Max. Surface Temperature (Dust): 130°C
• Storage Temperature: -40°C to +60°C
• Weight (g): 204
• Ingress Protection: IP67
• Body Colour: High Visibility Yellow
IECEx:
—• EX ia I Ma
—• EX ia IIC T4 Ga
—• EX ia IIIC T85°C Da
ATEX:
—• I M1 EX ia I Ma
—• II 1G EX ia IIC T4 Ga
—• II 1D EX ia IIIC T85°C Da
Gas:
—• Zone 0, 1, 2
Dust:
—• Zone 20, 21, 22
• Only Use 1.5V LR6 (AA) Alkaline Batteries (Dry)
• Do Not Mix Old and New Batteries
• Do Not Replace Batteries in Hazardous Places
• Do Not Use Rechargeable Cells
• Do Not Attach a Wrist Strap in Zone 0 or Zone 20 Areas or Applications
• This Product Cannot Be Covered by Thermal or Any Other Similar Insulation Materials
• Do Not Stare at the Light Source
• Do Not Open the Enclosure When the Flashlight is Working
• Do Not Open the Enclosure in Hazardous Areas

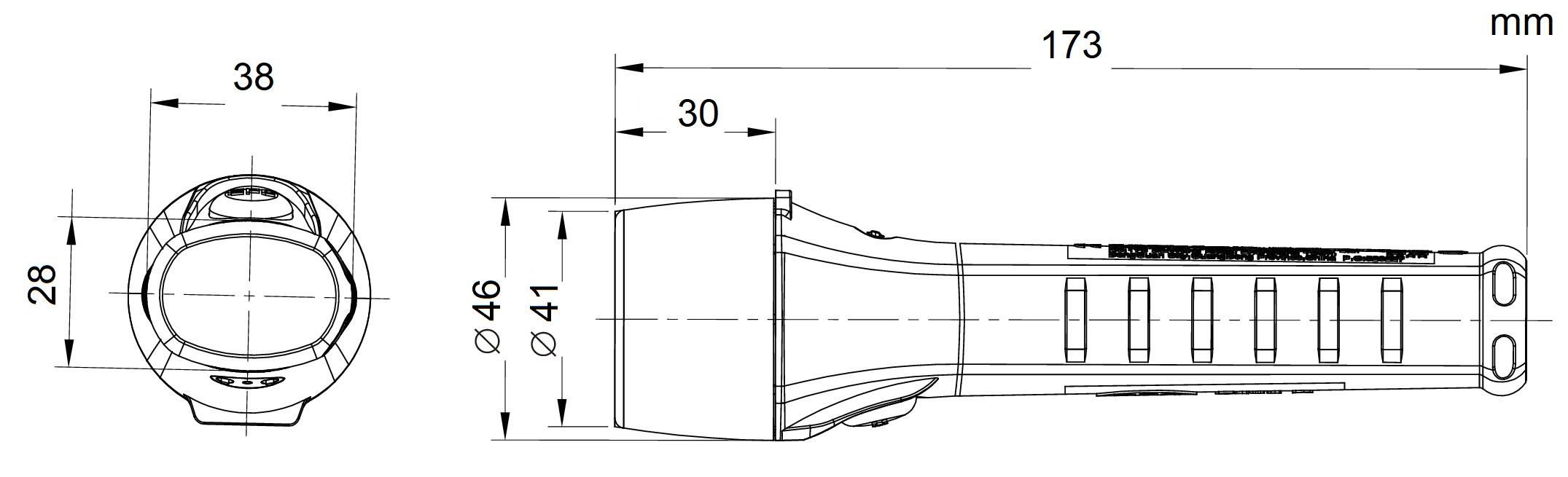

| Part Number | Product Family | Body Colour | Rated Power | Weight (g) | Dimensions (mm) |
|---|---|---|---|---|---|
| LUMXPK2Y | Ex | Yellow | 2W | 204 | Ø 46 x 173 |
